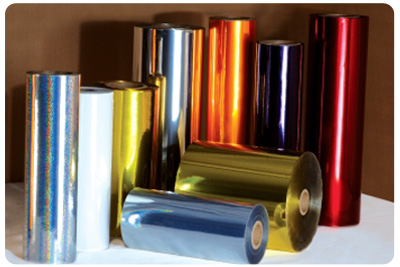

Metallised PVC Films for Special Applications
Created to address the visual appeal packaging needs of the pharma, food and confectionery industries, Day Mettle is a high performance metallised rigid PVC film available in a range of metallic colours with superior mettle adhesion properties. A real combination of aesthetics and functionality make Day Mettle the star choice where durability and sleek looks, are part of product appeal.
Salient Features :-
- Good visual Appeal
- Uniform coating & lacquering
- Excellent formability
- Higher processing yields
- Superior metal adhesion properties
- Good impact strength
- Active drug master filed with USFDA (DMF No. 17354, Type III)
- Complying to EEC/USP guidelines (current version)
Applications :-
 |
 |
 |

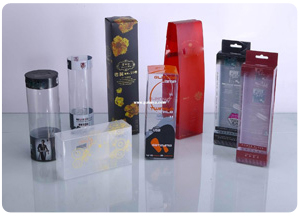

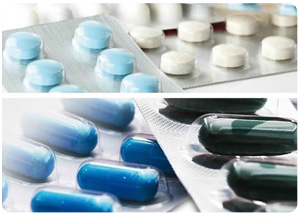

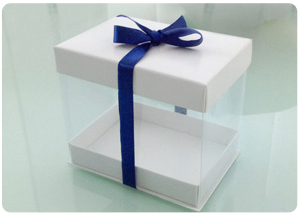

| Pharmaceutical Industry Tablets, Capsules Chiclets | Fancy PackagingGift Packs and Trays, Food/Cake Trays, Sweet Trays/Boxes, Holograms, | Novelty Items, Promotional Samples |
Fenoplast Films are Manufactured in a Controlled Environment Following Good Manufacturing Practices.
Technical Data :-
| SL. NO. | CHARACTERISTICS | UNIT | METHOD | SPECIFICATION & REMARKS |
|---|---|---|---|---|
| 1 | Thickness Tolerance | MICRONS | DIN 53370 | ± 10% for <_200; ± 8% for 201 to 400; ± 4% for 401 to 700 |
| 2 | GSM Tolerance | GM/M² | DIN 53352 | ± 10% for <200; ± 8% for 201 to 400; ± 4% for 401 to 700 |
| 3 | Gloss (@20°C) | % | ASTM D 2457 | Min. 85 for Transparent Film Min. 65 for Opaque Film |
| 4 | Impact Strength | GM | ASTM D 1709 | 400 Min. for > 250µ 250 Min. for < 220µ |
| 5 | Dimensional Stability (@ 1400°C/10 min) | % MD | DIN 53377 | -3.0 to -13.0(110 to 170µ), -3.0 to -10.0(171 to 200µ) -3.0 to -8.0(201 to 250µ), -3.0 to -7.0(>250µ) |
| %TD | DIN 53377 | 0.5 to 6.0(110 to 170µ), 0.5 to 5.0(171 to 200µ) 0.5 to 4.0(201 to 250µ), 0.5 to 2.5(>250µ) | ||
| 6 | Tensile Strength at Peak | KG/CM² | ASTM D 882 | _>500 |
| 7 | Elongation at Peak Load (Jaw Separation Speed @20mm/min) | % | ASTM D 882 | _>4 |
| 8 | Density | GM/CM³ | ASTM -D 792 | -1.4 ± 0.02 |
| 9 | Vicat Softening Point | °C | ASTM -D 1525 | 74 ± 2 |
| 10 | WVTR @ 38°C, 90% RH | GM/M²/24HR | ASTM F 1249 | < 4.00(<_200µ); <3.75(>220µ) |
| 11 | OTR @ 23°C, 0% RH | CM³/M²/24HR | ASTM D 3985 | < 12.00(<_200µ); <10.00(>220µ) |
| 12 | Toxicity | N/A | Current USP Method | Non - Toxic |
| 13 | Global Migration | PPM | 2002/72/EC | < 10 |
| 14 | RVCM Content | PPM | 78/142/EEC | < 0.50 |
| 15 | RoHS | PPM | 94/62/EC | Complies |
| 16 | Other Defects | N/A | FPL/QA/STP-17 | Free from Air Streaks, Dents, Hot Patches |
These technical specifications and end-use recommendations are based on our observations and assessment. Validating/optimizing the right grade may vary based on particular application, tooling and process conditions.
